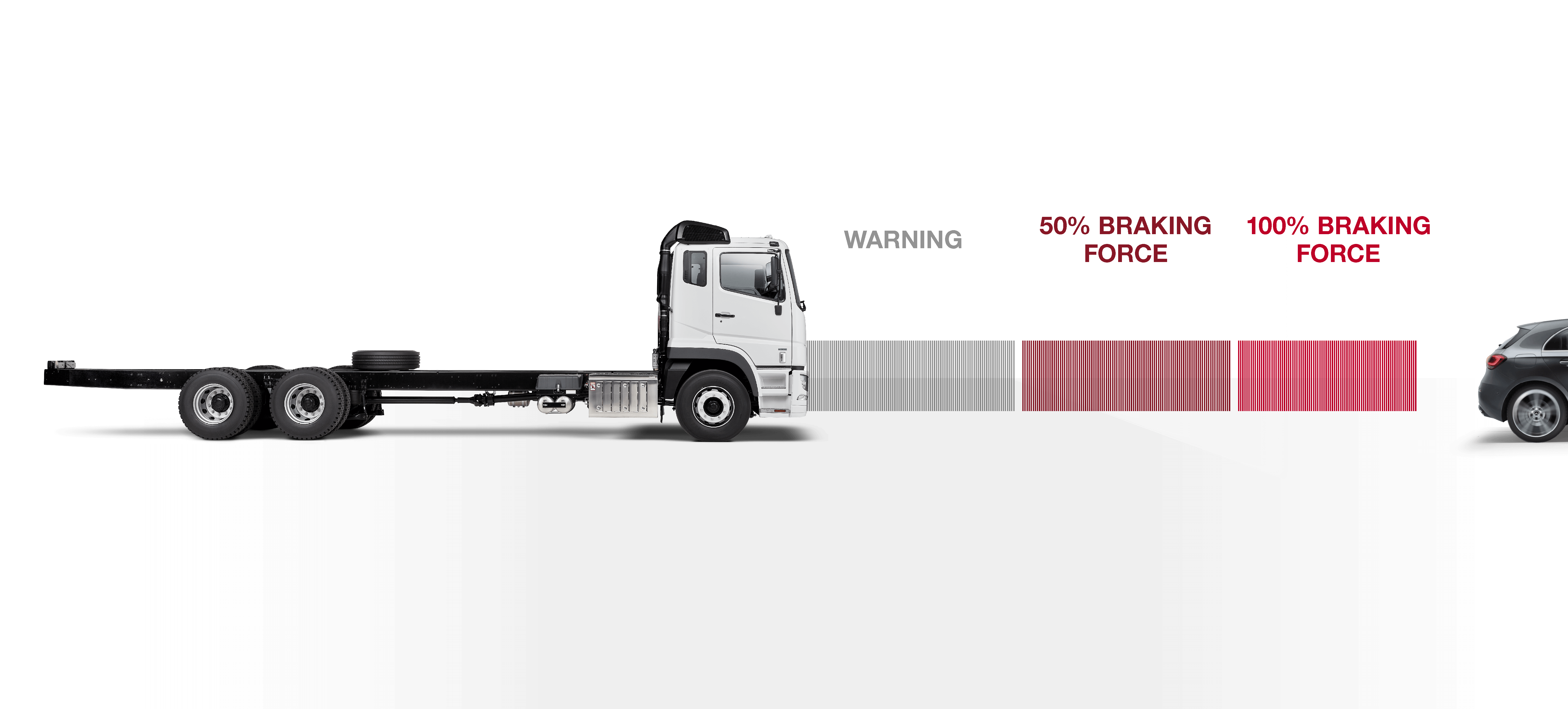

ABA5 helps to avoid or mitigate collisions with moving pedestrians (at speeds up to 50km/h) and other vehicles (at speeds up to 80km/h) by using a high-definition camera and radar in combination to monitor the road ahead. If there is risk of collision with a vehicle or moving pedestrian detected in the road ahead, ABA5 triggers a visual and audio warning and initiates partial braking, if the driver doesn’t respond, full emergency braking and hazard lights are autonomously initiated to prevent or minimise a collision.
LIGHTWEIGHT CHAMPION
Our compact and lightweight 8-litre JP17 (Euro 6 equivalent) rated OM936 engine has a high output to displacement ratio, providing efficient, effective power delivery and exceptional fuel economy with a low carbon footprint.
Advanced compound twin turbos ensure torque is available down low and builds strongly through the rev range, returning peak figures of 360hp/1400Nm. The flexibility of this power delivery is further enhanced by the 12-speed AMT with Eco Roll and Skip Shift functions.

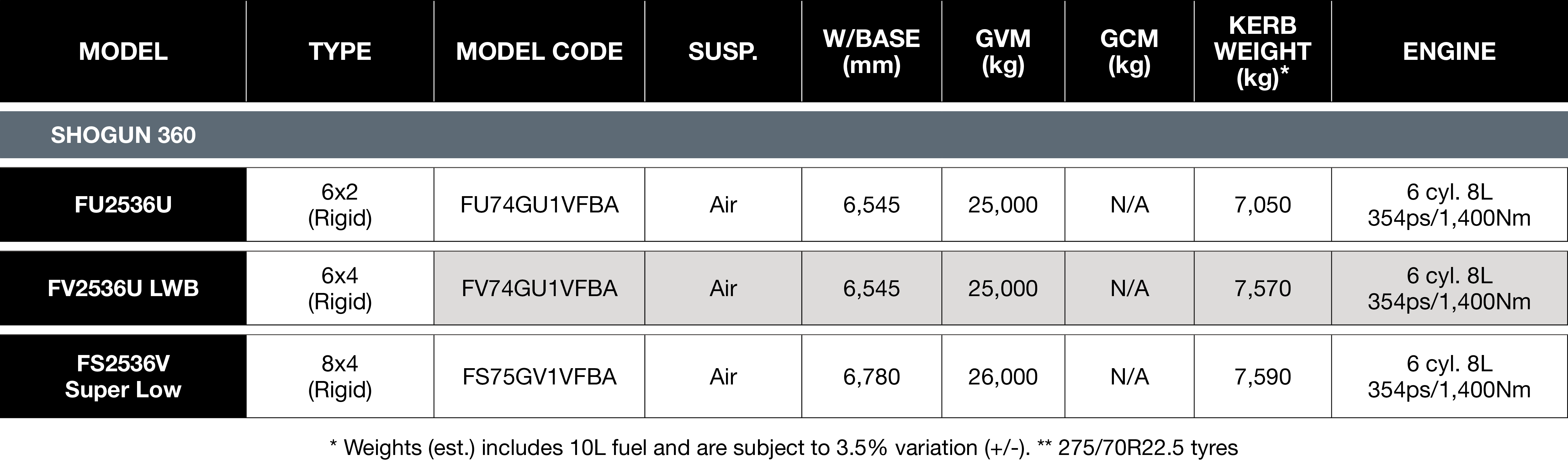

6x2 / 6x4
The Shogun 360 range includes two 25T metro freight specialists with ultra-smooth eight-bag rear air suspension in 6x2 and 6x4 configuration. Both models feature ride height control, which can be operated in the cab or remotely for added convenience at different loading docks.
8x4
The class-leading Shogun 360 8x4 Super Low runs on 19.5” wheels and features front and rear air suspension to safeguard sensitive freight.
Safety conscious
Ensuring it continues to deliver on the pledge ‘We Look After Our Own’, Fuso New Zealand has focused on beefing up Shogun’s already strong safety credentials as much as it has cranked up its pulling performance.
The new models boast an upgraded autonomous braking system in the form of Active Brake Assist 5 – top-of-the-range technology found in Daimler’s other headliners Actros 5 and Cascadia – as well as new Sideguard Assist, which monitors blind spots.
These additions strengthen Shogun’s existing stable of standard safety features, including Lane Departure Warning, Driver Fatigue Monitoring and Electronic Stability Control (460hp models have Active Brake Assist 4).
Watch how Shogun’s safety features kicked in to prevent a nasty accident
Active Brake Assist 5 (ABA5)

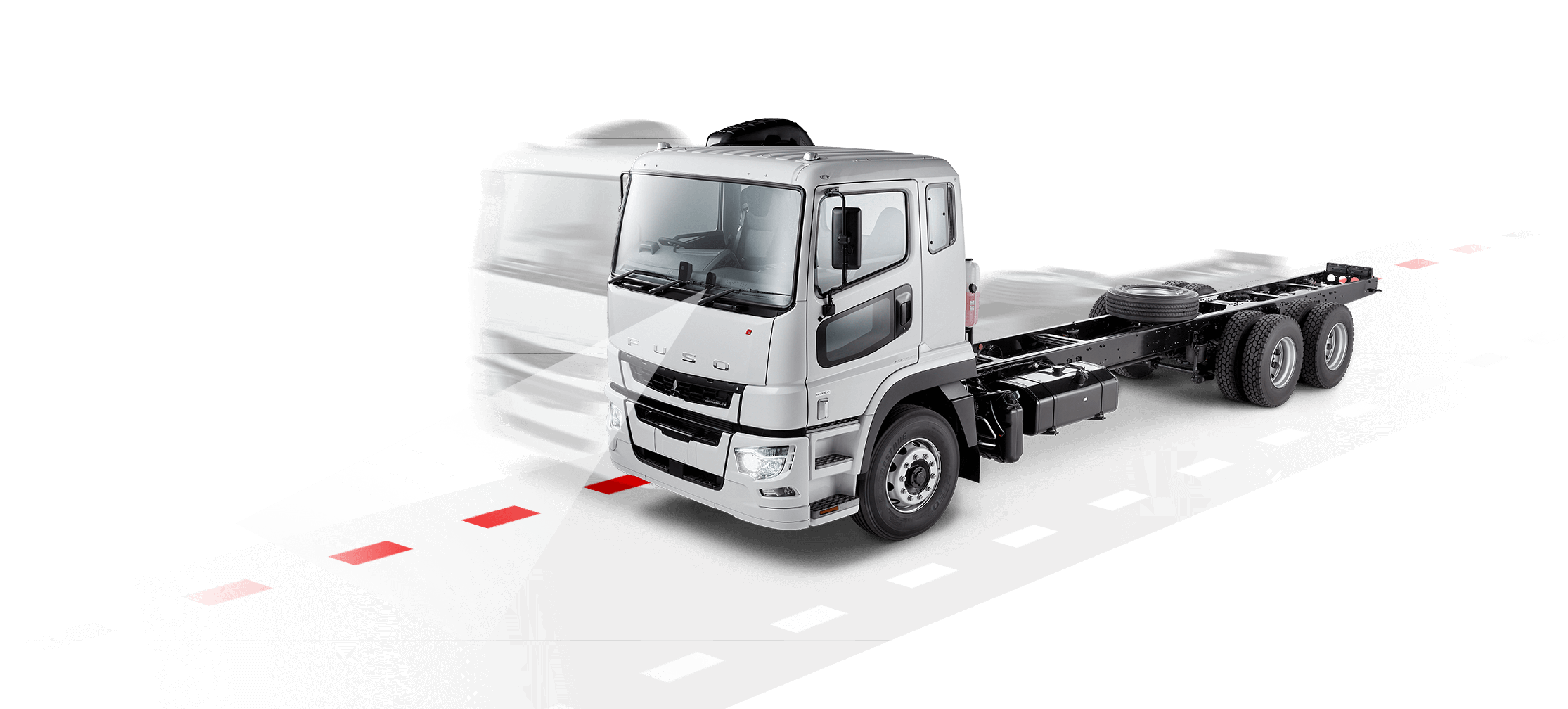

Lane Departure Warning System
LDWS operates at speeds over 60km/h to reduce the risk of lane departure accidents caused by distraction or fatigue.
A camera behind the windscreen detects lane markings and triggers visual and audio alerts if the vehicle crosses without the indicator deployed or an intended steering wheel movement.

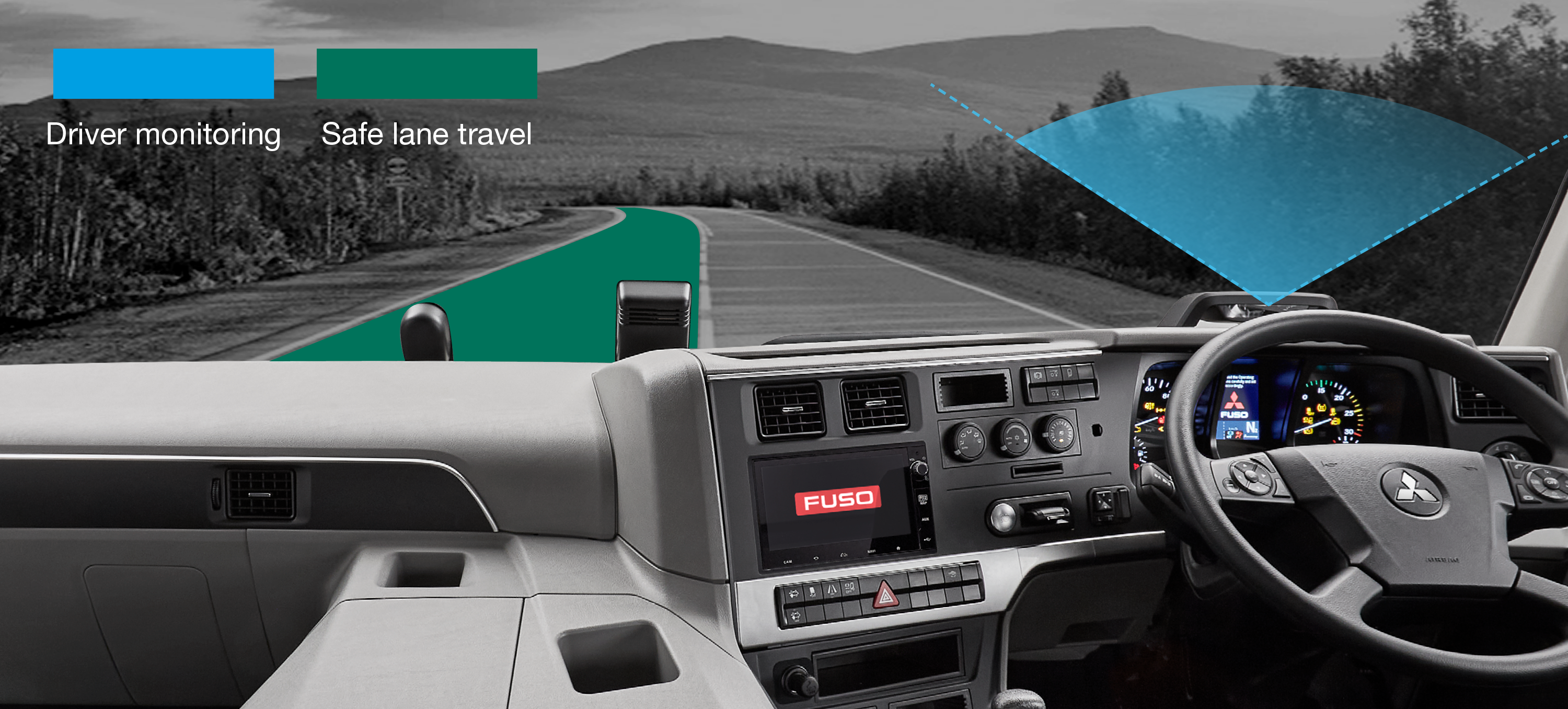

Active Attention Assist (Driver Fatigue Monitoring)
This system employs a range of inputs from monitoring steering behaviour, the truck’s path between lane markings and the driver’s head position and eye movement to register signs of driver fatigue and issue an alert if these are detected.

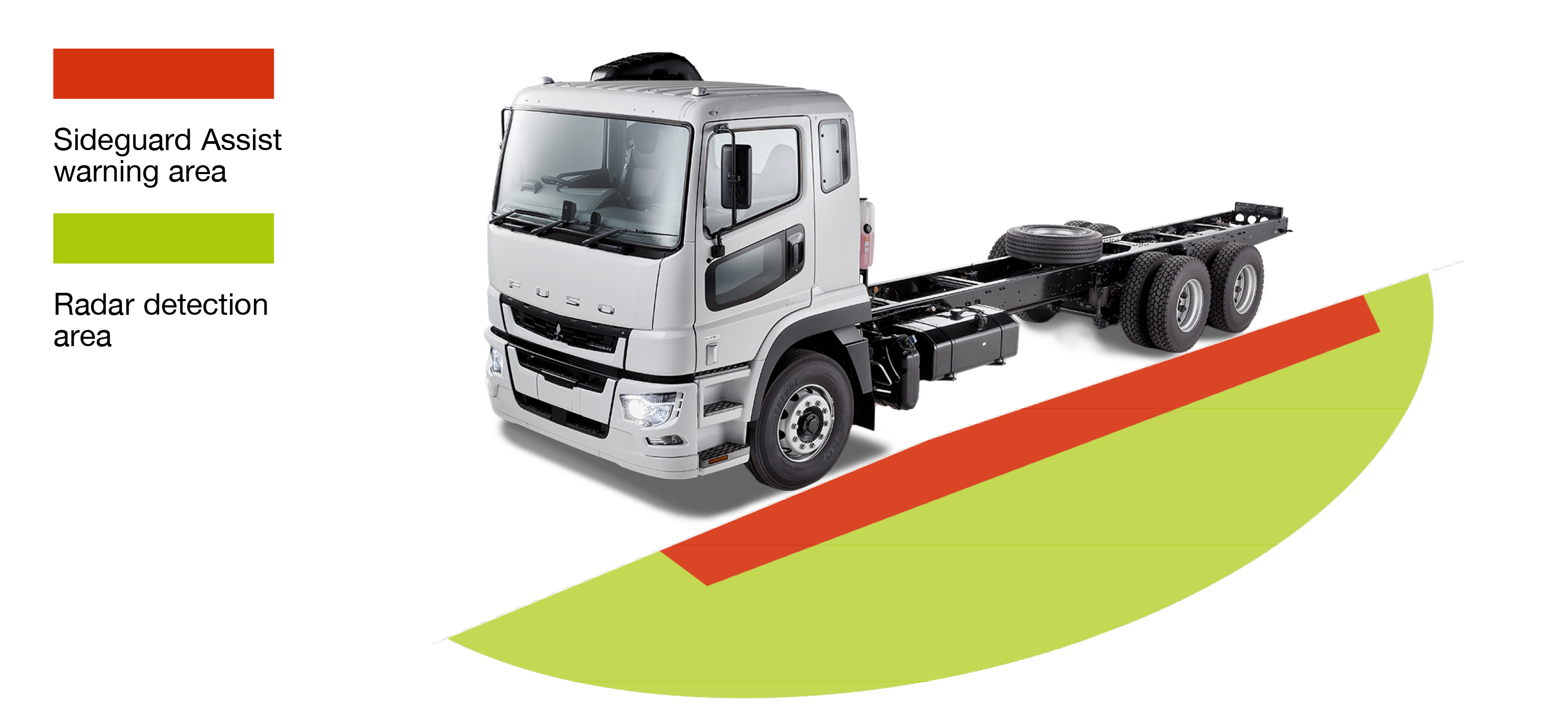

Active Sideguard Assist
ASA detects moving objects on the left-hand side of the vehicle, triggering an eye-level warning light to attract the driver’s attention to the left-side wing mirrors. If there is a risk of collision, the warning light flashes several times in red. After two seconds, it remains permanently illuminated in red and, in the event of an imminent collision, a warning tone also sounds.

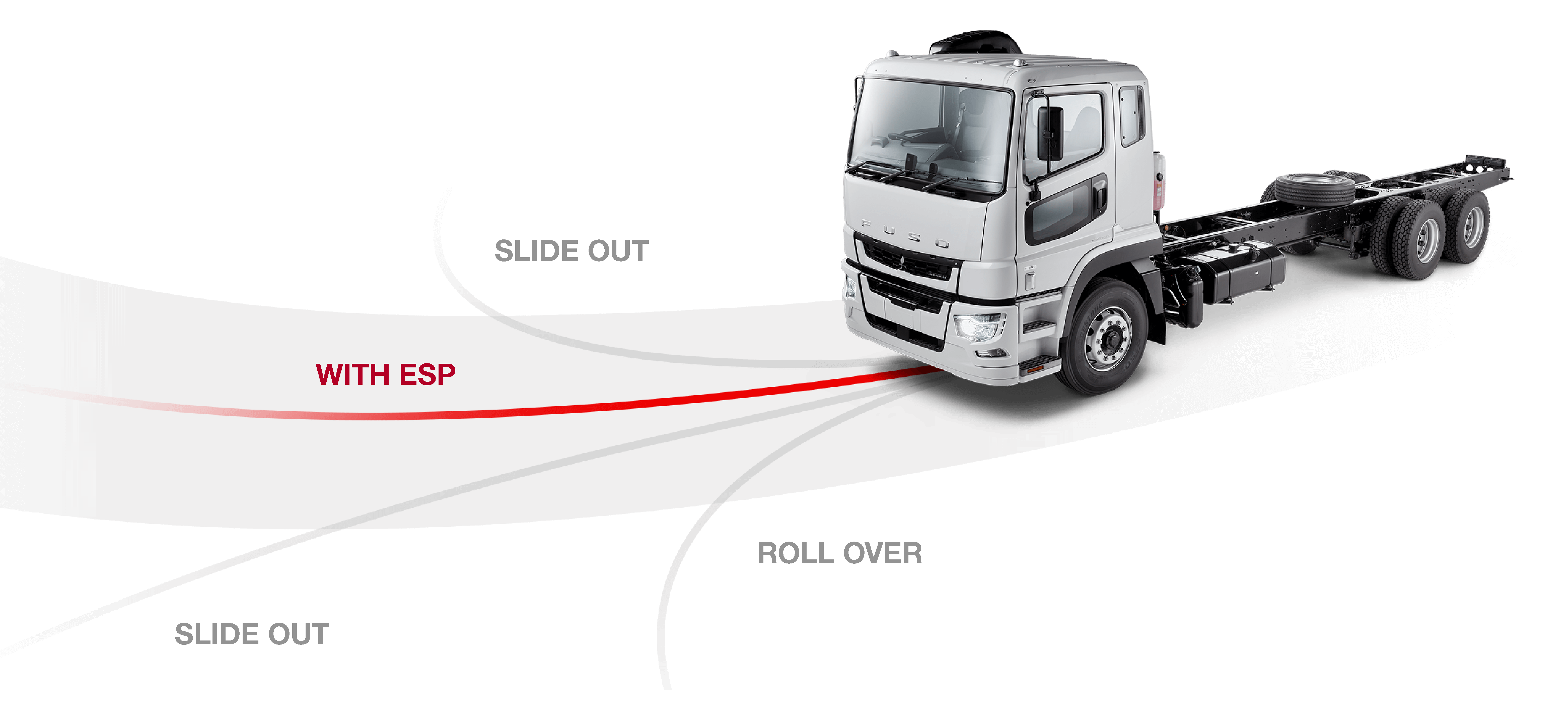

Electronic Stability Control (ESC)
ESC employs a steering sensor and yaw rate sensor to detect loss of control or the onset of rollover. This information is relayed to the ESC controller, which reduces engine torque and applies appropriate brake force to individual wheels to aid steering control and improve stability.
ESC – Directional Control and Roll-over Protection
Brake force is applied to the inside rear wheel to prevent drift when cornering on slippery roads.
Brake force is applied to both outside wheels during cornering to help prevent roll-over.

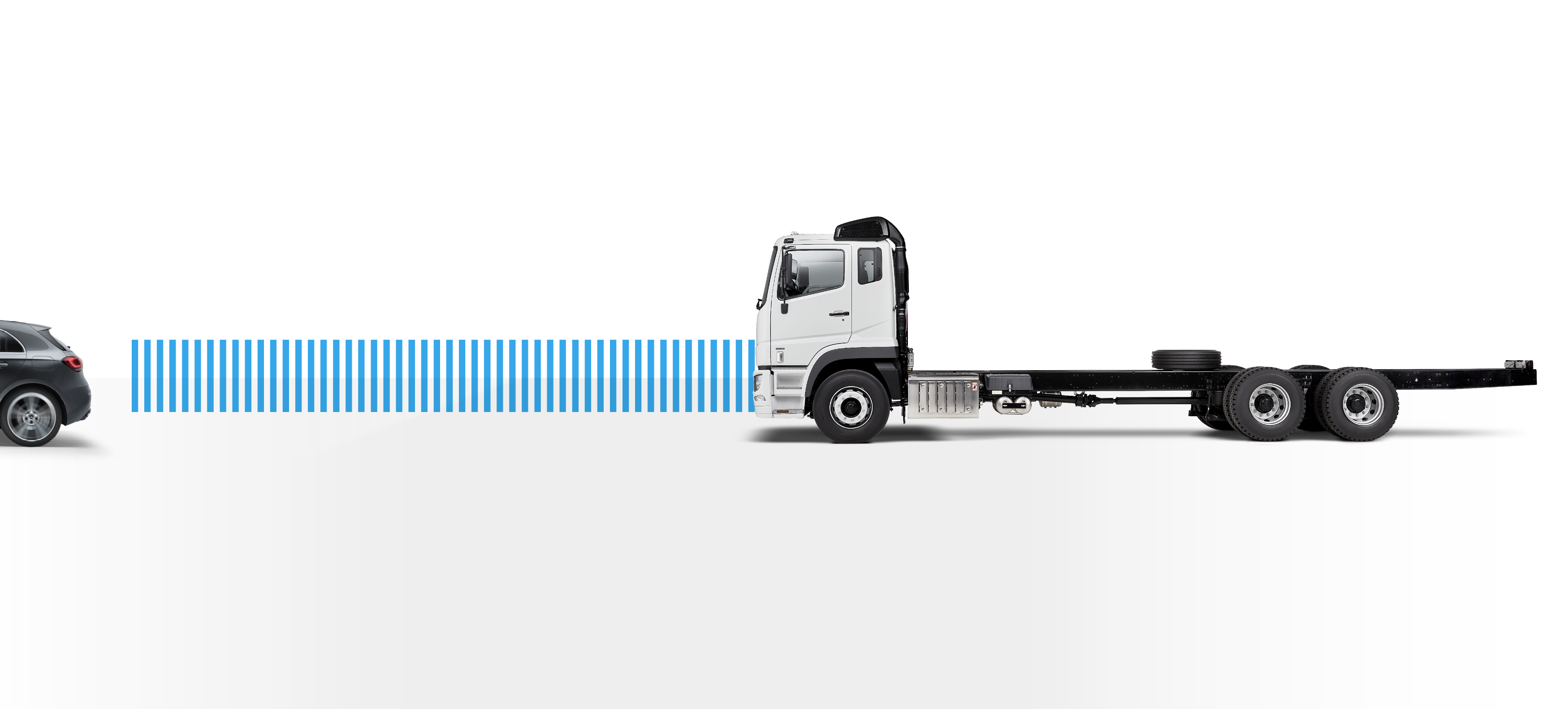

Proximity Control Assist (Adaptive Cruise Control)
Automatically adapts the truck’s speed through accelerator and brake control to maintain safe proximity to the vehicle in front.
The system incorporates a stop-and-go function, which brings the truck to a complete stop if the vehicle in front stops and slowly pulls away when the vehicle in front starts to move ahead. This technology has huge benefits in stop/go traffic and helps reduce driver fatigue.

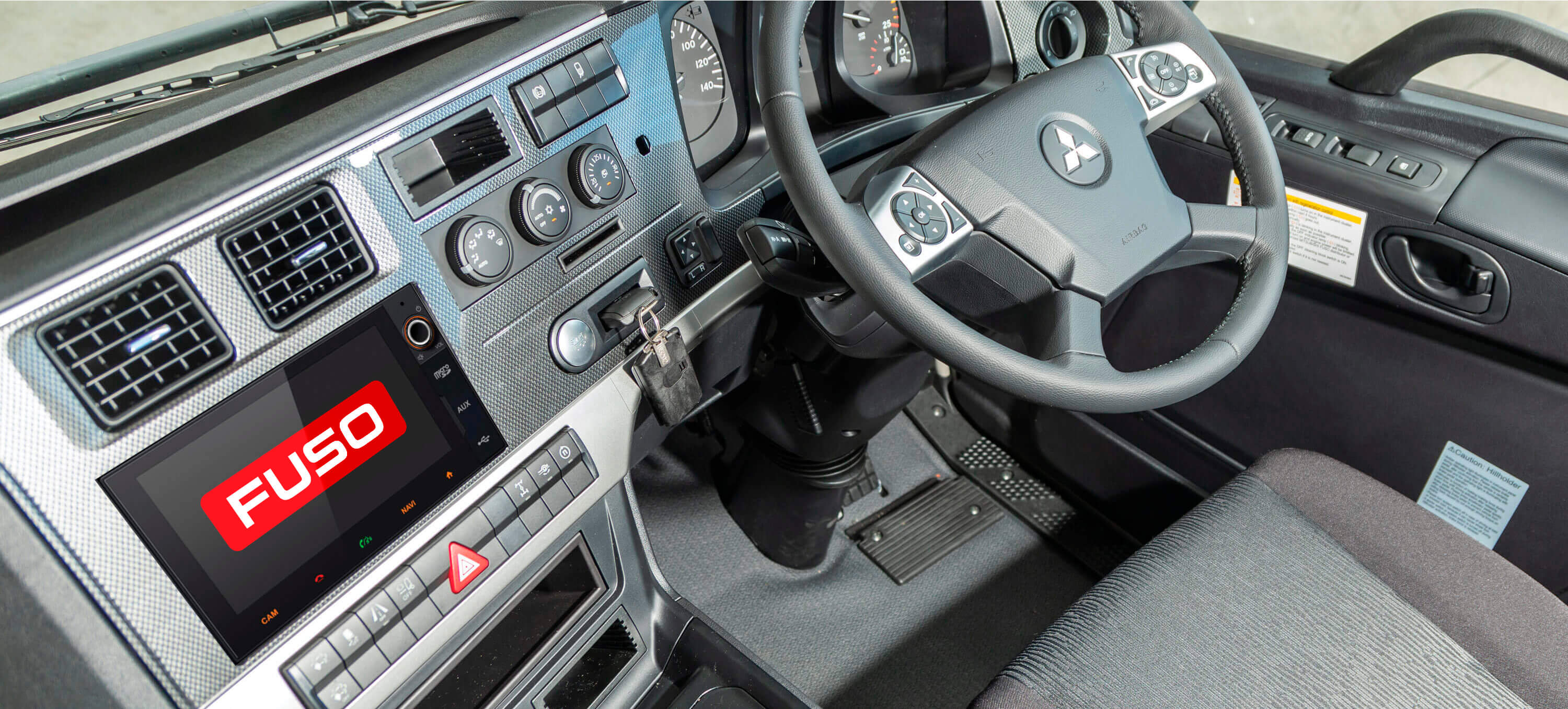

7” TOUCHSCREEN MEDIA UNIT WITH REVERSING CAMERA
This class-leading, new system with steering wheel controls for safe operation, features an on-dash screen, which relays images from the high-definition, infrared reversing camera, and has Apple CarPlay and Android Auto compatibility for hands-free talking text-to-speech functionality. It is also compatible with other approved phone apps such as Google Maps and Spotify. Four additional cameras, reverse sensors and tyre pressure monitoring are optional extras, along with truck specific navigation.
Get into a Shogun!
Get in touch with your local FUSO dealer to discuss the best heavy-duty FUSO for your business.
Maintenance advice for your heavy-duty FUSO
All FUSO Shogun heavy-duty trucks come with a five year, 500,000km extended warranty. Simply have your vehicle serviced at an authorised FUSO Service Centre, at the recommended servicing intervals, and you are covered by an additional two-year / 250,000km FUSO warranty on top of the first three years / 250,000km.
Refer to the terms and conditions in the FUSO warranty booklet for full details.
Full service intervals are required at 60,000km, depending on application/use. A safety inspection, with greasing, every 15,000km is required for reliability and to maintain warranty cover.
Roadside assistance
In the event of a roadside breakdown or accident, your FUSO NZ Roadside Assist team will provide advice or roadside assistance 24 hours a day, 365 days a year. We deliver emergency support in both city and rural areas, working in partnership with our dealer network to get you back on the road.
To access this service, call toll free on 0800 FUSO 007 (0800-3876-007)
Easy Pay service contracts
FUSO’s Cents Per Kilometre Service Contracts helps operators align with operating costs to help ease cashflow issues – while our heavy duty trucks have excellent access to a wide range of genuine parts from its warehouse, with more than 12,000 FUSO product lines in stock at our Auckland distribution centre.
